Unidirectional TVS Diode for transient voltage suppression, featuring a 12V operating and reverse standoff voltage. This surface mount component offers a 600W peak pulse power rating with a 30.15A peak pulse current capability. Breakdown voltage ranges from 13.3V to 14.7V, with a clamping voltage of 19.9V. Operating temperature spans -55°C to 150°C, housed in a DO-214AA package.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Kyocera SMBJ12A technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 19.9V |
| Diode Type | ZENER |
| Max Breakdown Voltage | 14.7V |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Surge Current | 30.15A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 30.15A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera SMBJ12A Datasheet
Download the complete datasheet for Kyocera SMBJ12A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

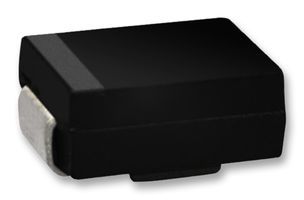

Product Images
