Surface mount tantalum capacitor, 22µF capacitance, 4V DC rated voltage, 20% tolerance. Features a 0603 (1608 metric) case code, 7.5Ω ESR, and 900nA leakage current. Operates from -55°C to 125°C, constructed with tantalum dielectric. RoHS compliant and lead-free.
Package0603
Voltage4V
Capacitance22uF
Voltage Rating4V
Quick Jump:
Technical Specifications
Kyocera TACL226M004XTA technical specifications.
General
Capacitance
22uF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.85mm
Dielectric Material
Tantalum
Dissipation Factor
20%
ESR (Equivalent Series Resistance)
7.5R
Features
General Purpose
Height
0.85mm
Lead Free
Lead Free
Leakage Current
900nA
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAC
Termination
SMD/SMT
Tolerance
20%
Voltage
4V
Voltage Rating
4V
DC Rated Voltage
4V
Width
0.85mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TACL226M004XTA Datasheet
Download the complete datasheet for Kyocera TACL226M004XTA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

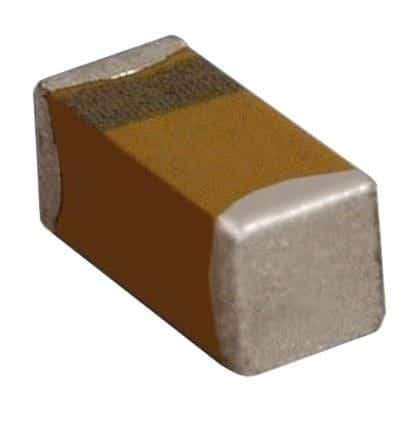

Product Images
