Solid tantalum capacitor, 1µF capacitance, 35V DC rated voltage, and 20% tolerance. Features a 3.2mm length, 1.6mm width, and 1.8mm height with a 1.6mm depth. Offers 7.5Ω ESR and 4% dissipation factor. Designed for surface mount applications with SMD/SMT termination, packaged in tape and reel. Operating temperature range from -55°C to 125°C.
Package1206
Voltage25V
Capacitance1uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TAJA105M035RNJ technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dissipation Factor | 4% |
| ESR (Equivalent Series Resistance) | 7.5R |
| Features | General Purpose |
| Height | 1.8mm |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJA105M035RNJ Datasheet
Download the complete datasheet for Kyocera TAJA105M035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

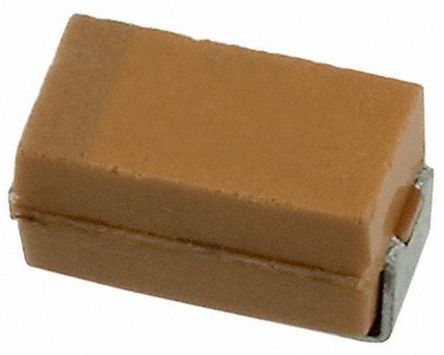

Product Images
