General purpose tantalum capacitor, 22µF capacitance with 10% tolerance, rated for 6.3V DC. Features a 1206 (3216 metric) surface mount case code, 1.6mm height, 3.2mm length, and 1.6mm width. Offers 3Ω ESR, 1.4µA leakage current, and a dissipation factor of 6%. Operates across a temperature range of -55°C to 125°C, constructed with tantalum dielectric and SMD/SMT termination.
Package1206
Voltage6.3V
Capacitance22uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TAJA226K006RNJ technical specifications.
General
Capacitance
22uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
3R
Features
General Purpose
Height
1.6mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Leakage Current
1.4uA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJA226K006RNJ Datasheet
Download the complete datasheet for Kyocera TAJA226K006RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

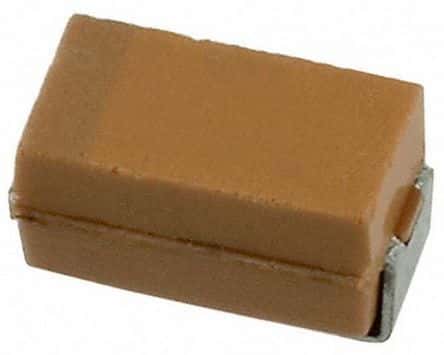

Product Images
