33µF Tantalum Capacitor, 6.3V DC rated voltage, 20% tolerance. Features 1206 (3216 metric) surface mount case code, 1.6mm width, 3.2mm length, and 1.8mm height. Offers 2.2Ω ESR, 8% dissipation factor, and 2.1µA leakage current. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free.
Package1206
Capacitance33uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TAJA336M006RNJ technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 2.2R |
| Features | General Purpose |
| Height | 1.8mm |
| Lead Free | Lead Free |
| Leakage Current | 2.1uA |
| Length | 3.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 185mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJA336M006RNJ Datasheet
Download the complete datasheet for Kyocera TAJA336M006RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

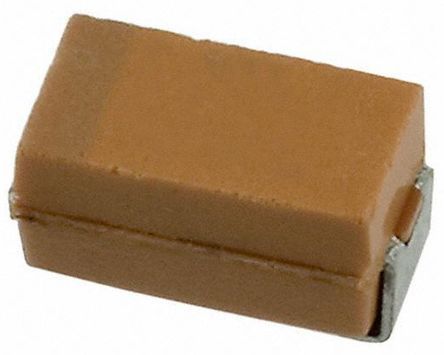

Product Images
