Solid tantalum capacitor with 4.7µF capacitance and 10V DC rating. Features 10% tolerance, 5R ESR, and a maximum operating temperature of 125°C. Surface mountable in a 3216 metric / 1206 imperial case code, measuring 3.2mm x 1.6mm x 1.6mm. Polarized construction with tin/lead termination, supplied on tape and reel.
Package1206
Voltage10V
Capacitance4.7uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TAJA475K010RNJ technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
5R
Features
General Purpose
Height
1.6mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Lead Pitch
1.1mm
Leakage Current
500nA
Length
3.2mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
122mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJA475K010RNJ Datasheet
Download the complete datasheet for Kyocera TAJA475K010RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

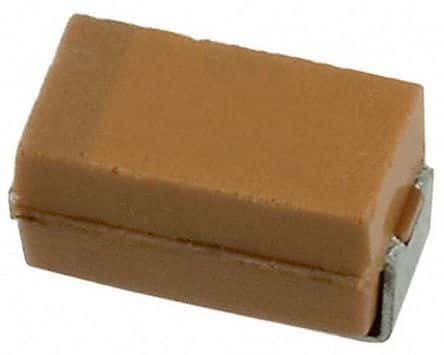

Product Images
