Surface mount tantalum capacitor with 4.7µF capacitance and 10% tolerance. Features a 16V DC voltage rating, 1206 (3216 metric) case code, and a maximum operating temperature of 125°C. This general-purpose component offers a low leakage current of 800nA and a ripple current of 137mA, with an ESR of 4Ω. Constructed with a flat tantalum dielectric, it is supplied on tape and reel for automated assembly.
Package1206
Voltage16V
Capacitance4.7uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TAJA475K016RNJ technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 4R |
| Features | General Purpose |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.1mm |
| Leakage Current | 800nA |
| Length | 3.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 137mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 16V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJA475K016RNJ Datasheet
Download the complete datasheet for Kyocera TAJA475K016RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

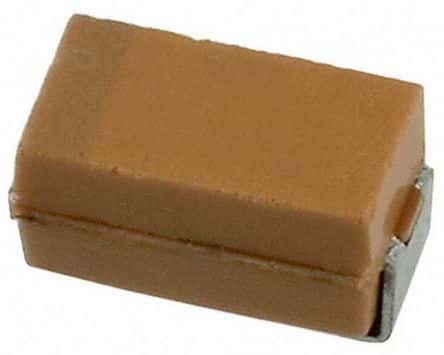

Product Images
