10µF, 10V, 20% tolerance tantalum capacitor with 2.5Ω ESR and 1µA leakage current. Features a 1210 package size, 3528 metric case code, and surface mount termination. Operating temperature range from -55°C to 125°C, with a ripple current of 201mA. Lead-free and RoHS compliant construction.
Package1210
Voltage10V
Capacitance10uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TAJB106M010RNJ technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 2.5R |
| Features | General Purpose |
| Height | 1.9mm |
| Height - Seated (Max) | 0.083inch |
| Lead Free | Lead Free |
| Lead Pitch | 1.4mm |
| Leakage Current | 1uA |
| Length | 3.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 201mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.11inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJB106M010RNJ Datasheet
Download the complete datasheet for Kyocera TAJB106M010RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

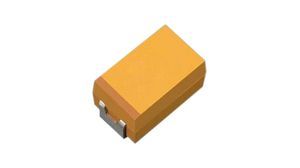

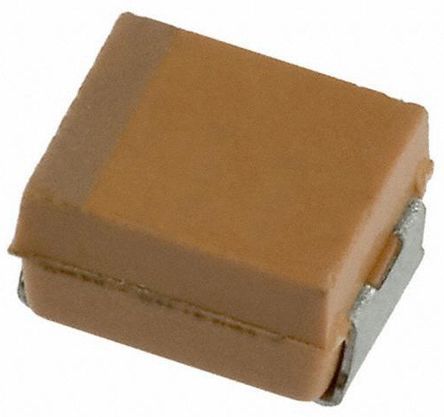

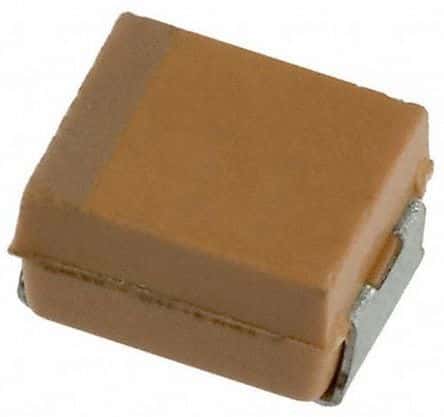

Product Images
