Solid tantalum capacitor, 10µF capacitance, 20V DC rated voltage, 20% tolerance. Features 2.1Ω ESR, 125°C maximum operating temperature, and 2µA leakage current. Surface mountable with a 3528 metric case code and 1.4mm lead pitch. Packaged in tape and reel for automated assembly.
Package1210
Voltage20V
Capacitance10uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Kyocera TAJB106M020RNJ technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1210
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
2.1R
Features
General Purpose
Height
1.9mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Lead Pitch
1.4mm
Leakage Current
2uA
Length
3.5mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
201mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
20%
Voltage
20V
Voltage Rating
20V
DC Rated Voltage
20V
Width
0.11inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJB106M020RNJ Datasheet
Download the complete datasheet for Kyocera TAJB106M020RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

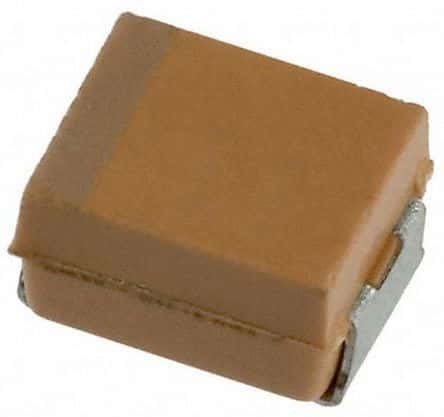

Product Images
