Surface mount tantalum capacitor with 2.2µF capacitance and 10% tolerance. Features a 25V DC rating, 125°C maximum operating temperature, and low ESR of 4.5Ω. Molded construction in a 3528 metric (1210 imperial) case code, with a 1.9mm height, 2.8mm width, and 3.5mm length. General purpose, lead-free, and RoHS compliant for reliable electronic applications.
PackageMolded
Voltage25V
Capacitance2.2uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TAJB225K025RNJ technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3528 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 4.5R |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Leakage Current | 600nA |
| Length | 3.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 137mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| Voltage Rating (AC) | 25V |
| DC Rated Voltage | 25V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJB225K025RNJ Datasheet
Download the complete datasheet for Kyocera TAJB225K025RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

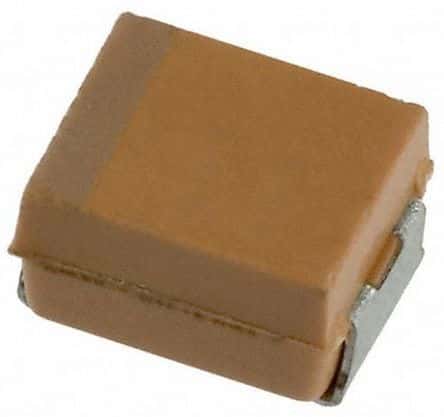

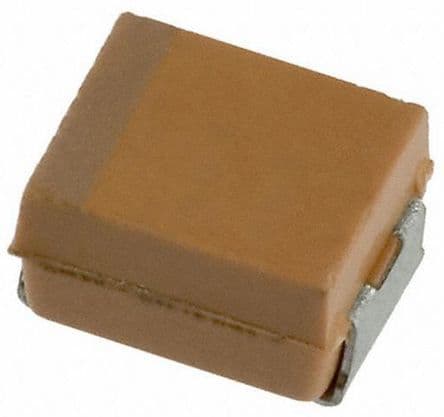

Product Images
