3.3µF, 35V polarized tantalum capacitor with 10% tolerance. Features a 1210 (3528 metric) surface mount case code, 3.5Ω ESR, and 1.2µA leakage current. Operating temperature range from -55°C to 125°C. RoHS compliant and lead-free.
Package1210
Voltage35V
Capacitance3.3uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TAJB335K035RNJ technical specifications.
General
Capacitance
3.3uF
Case Code (Imperial)
1210
Case Code (Metric)
3528
Package/Case
1210
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
3.5R
Features
General Purpose
Height
1.9mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Lead Pitch
1.4mm
Leakage Current
1.2uA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Weight
0.000564oz
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJB335K035RNJ Datasheet
Download the complete datasheet for Kyocera TAJB335K035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

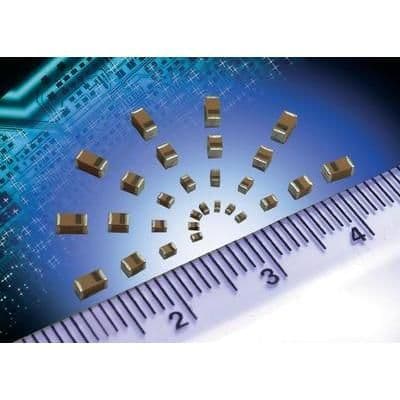

Product Images
