General purpose tantalum capacitor, 33µF capacitance with 10% tolerance, rated for 10V DC. Features a 1210 (3528) surface mount case code with a flat construction, measuring 3.5mm length, 2.8mm width, and 1.9mm height. Offers 1.8Ω ESR, 3.3µA leakage current, and 217mA ripple current. Operates from -55°C to 125°C, with a dissipation factor of 6%. This RoHS compliant component is supplied on tape and reel.
Package1210
Voltage10V
Capacitance33uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TAJB336K010RNJ technical specifications.
General
Capacitance
33uF
Case Code (Imperial)
1210
Case Code (Metric)
3528
Package/Case
1210
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.8R
Features
General Purpose
Height
1.9mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Lead Pitch
1.4mm
Leakage Current
3.3uA
Length
3.5mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
217mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
Voltage Rating (AC)
10V
DC Rated Voltage
10V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJB336K010RNJ Datasheet
Download the complete datasheet for Kyocera TAJB336K010RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

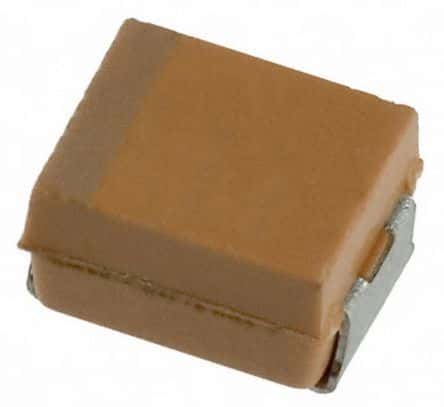

Product Images
