Solid Tantalum Capacitor, 4.7µF capacitance, 25V DC rated voltage, and 10% tolerance. Features a B case size (3528 metric, 1210 imperial) with dimensions of 3.5mm length, 2.8mm width, and 1.9mm height. Offers 1.5 Ohm ESR, 1.5µA leakage current, and a maximum operating temperature of 125°C. Surface mountable with SMD/SMT termination, packaged on tape and reel.
PackageMolded
Voltage25V
Capacitance4.7uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TAJB475K025RNJ technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
1210
Case Code (Metric)
3528
Package/Case
Molded
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.5R
Features
General Purpose
Height
1.9mm
Lead Free
Lead Free
Lead Pitch
1.4mm
Leakage Current
1.2uA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Weight
0.000564oz
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJB475K025RNJ Datasheet
Download the complete datasheet for Kyocera TAJB475K025RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

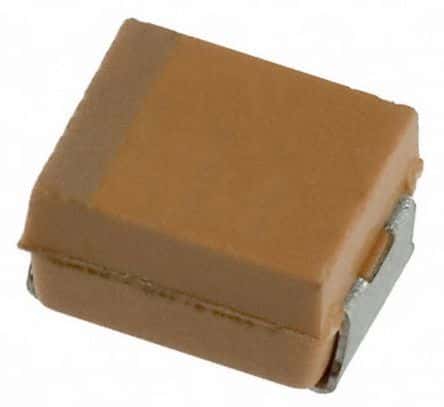

Product Images
