150µF, 10V, 10% tolerance tantalum capacitor with a 6032-28 (2312 imperial) surface mount case. Features include 900mΩ ESR, 350mA ripple current, and 15µA leakage current. Operating temperature range is -55°C to 125°C. This general-purpose component is RoHS compliant and supplied in tape and reel packaging.
Package6032-28
Voltage10V
Capacitance150uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TAJC157K010RNJ technical specifications.
General
Capacitance
150uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
6032-28
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
900mR
Features
General Purpose
Height
2.6mm
Lead Free
Lead Free
Leakage Current
15uA
Length
6mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
350mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
Voltage Rating (AC)
10V
DC Rated Voltage
10V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJC157K010RNJ Datasheet
Download the complete datasheet for Kyocera TAJC157K010RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

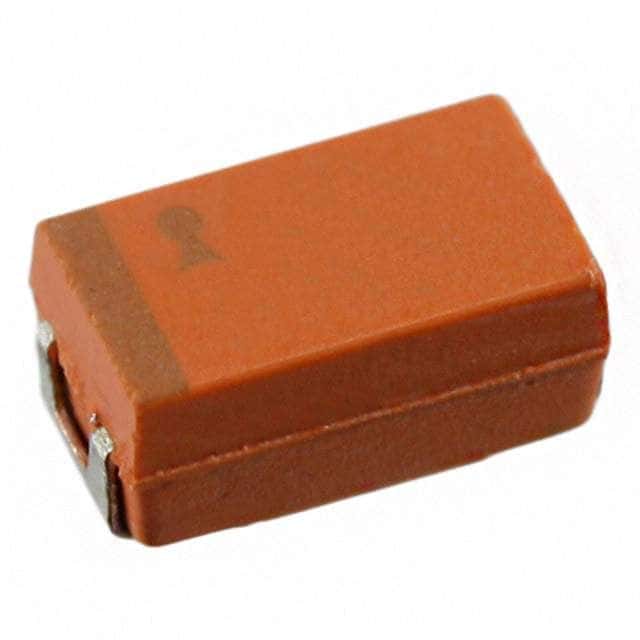

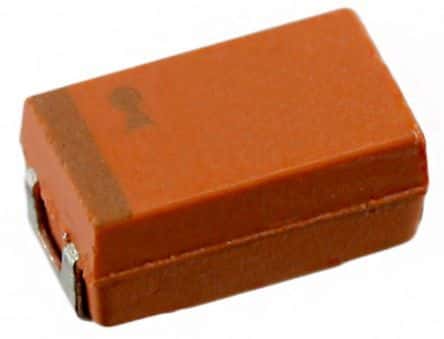

Product Images
