Solid Tantalum Capacitor, 4.7µF capacitance, 25V voltage rating. Features 10% tolerance, 2.4 Ohm ESR, and 1.2µA leakage current. Surface mountable with a 6mm length, 3.2mm width, and 2.6mm height. Operates from -55°C to 125°C, with a 6% dissipation factor. RoHS compliant and general purpose.
Package2412
Voltage25V
Capacitance4.7uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TAJC475K025RNJ technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
2412
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
2.4R
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
1.2uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJC475K025RNJ Datasheet
Download the complete datasheet for Kyocera TAJC475K025RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

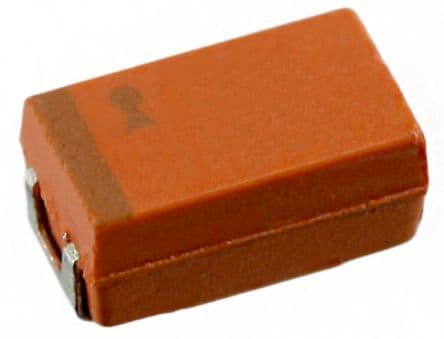

Product Images
