Surface mount tantalum capacitor with 4.7uF capacitance and 10% tolerance, rated for 35V. Features a 2312 case code (6032 metric) with a 3.2mm depth, 2.6mm height, and 6mm length. Offers 2.2 Ohms ESR, 1.6uA leakage current, and 224mA ripple current. Operates from -55°C to 125°C and is RoHS compliant.
Package2412
Voltage35V
Capacitance4.7uF
Voltage Rating35V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Kyocera TAJC475K035RNJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Kyocera TAJC475K035RNJ technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | 2412 |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 2.2R |
| Features | General Purpose |
| Height | 2.6mm |
| Height - Seated (Max) | 0.11inch |
| Lead Free | Lead Free |
| Lead Pitch | 2.9mm |
| Leakage Current | 1.6uA |
| Length | 6mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Q Factor | 6 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 224mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 35V |
| Voltage Rating | 35V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 35V |
| Weight | 0.005291oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJC475K035RNJ Datasheet
Download the complete datasheet for Kyocera TAJC475K035RNJ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

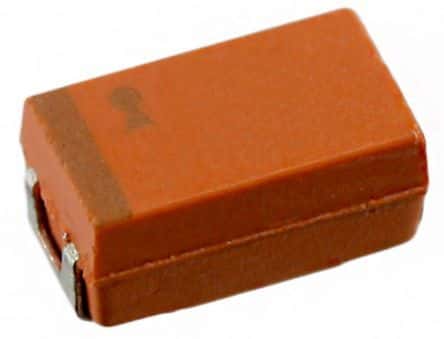

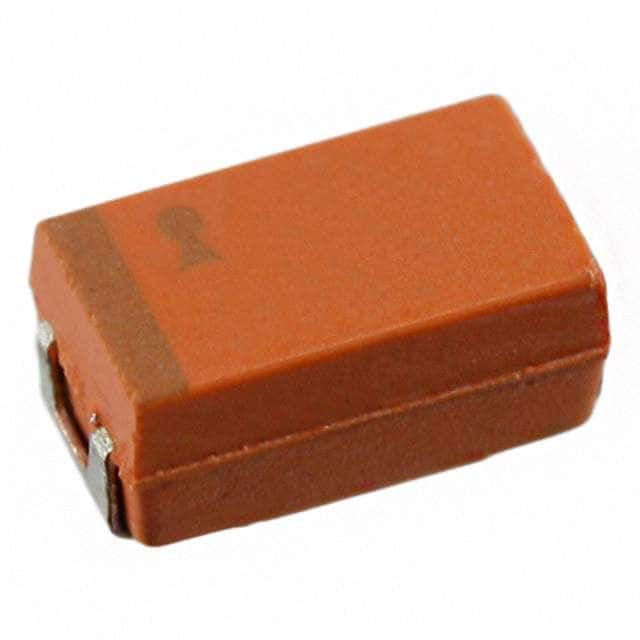

Product Images
