General purpose solid tantalum capacitor with 47µF capacitance and 6.3V voltage rating. Features 10% tolerance, 1.6Ω ESR, and a maximum operating temperature of 125°C. Surface mountable in a 6032 metric case code (2312 imperial), measuring 6mm x 3.2mm x 2.6mm. Polarized, lead-free, and RoHS compliant, supplied on tape and reel.
PackageMolded
Voltage6.3V
Capacitance47uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TAJC476K006RNJ technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.6R
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Lead Pitch
2.9mm
Leakage Current
3uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJC476K006RNJ Datasheet
Download the complete datasheet for Kyocera TAJC476K006RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

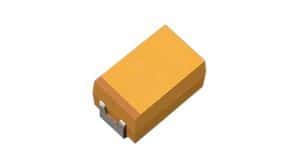

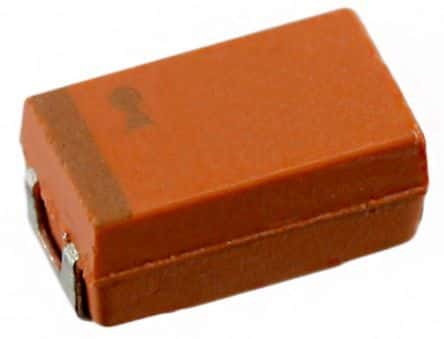

Product Images
