General purpose tantalum capacitor with 6.8µF capacitance and 10% tolerance. Features a 35V voltage rating, 1.8Ω ESR, and 2.4µA leakage current. Constructed with a flat tantalum dielectric in a 6032 metric case code (2312 imperial), measuring 6mm x 3.2mm x 2.6mm. Surface mountable with SMD/SMT termination, operating from -55°C to 125°C.
Package6032-28
Voltage35V
Capacitance6.8uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TAJC685K035RNJ technical specifications.
General
Capacitance
6.8uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
6032-28
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.8R
Features
General Purpose
Height
2.6mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
2.4uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJC685K035RNJ Datasheet
Download the complete datasheet for Kyocera TAJC685K035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

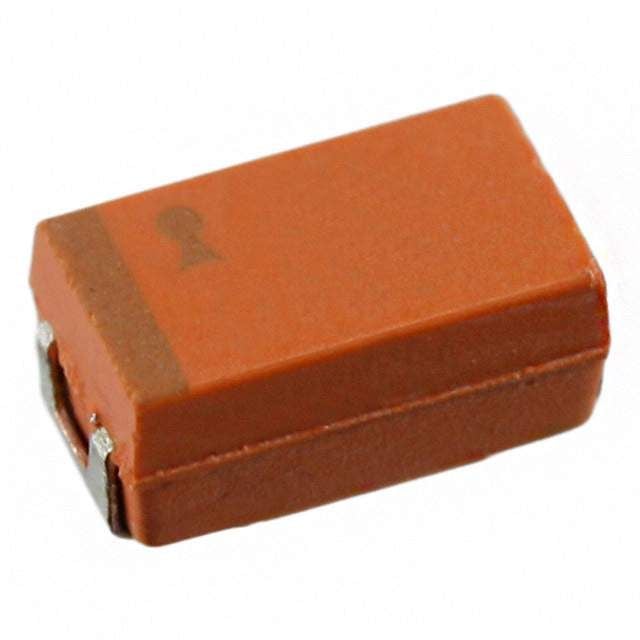

Product Images
