Surface mount tantalum capacitor with 10µF capacitance and 20% tolerance. Features a 25V DC rating, 1.2Ω ESR, and 2.5µA leakage current. Operating temperature range from -55°C to 125°C. Constructed with a flat tantalum dielectric in a 2917 (7343) case code. RoHS compliant and lead-free.
Package2917
Voltage25V
Capacitance10uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TAJD106M025RNJ technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.2R
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
2.5uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD106M025RNJ Datasheet
Download the complete datasheet for Kyocera TAJD106M025RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

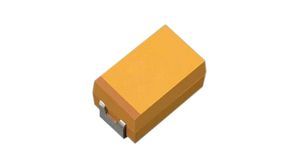

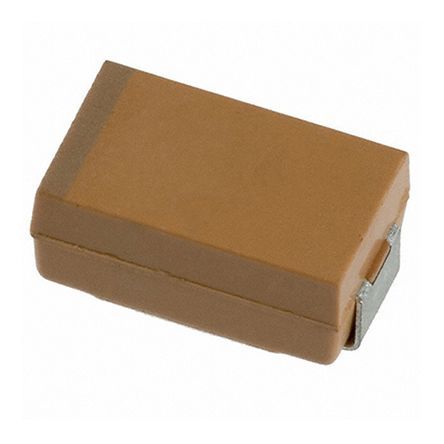

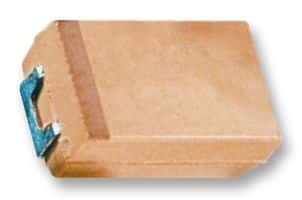

Product Images
