100µF, 16V tantalum capacitor with 20% tolerance, designed for general-purpose applications. Features a 2917 (7343 metric) surface mount package with a flat construction, 4.3mm depth, 2.9mm height, 7.3mm length, and 4.3mm width. Offers a low dissipation factor of 6%, 600mΩ ESR, and 16µA leakage current. Operates across a wide temperature range from -55°C to 125°C, with lead-free and RoHS compliance.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TAJD107M016RNJ technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
600mR
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
16uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD107M016RNJ Datasheet
Download the complete datasheet for Kyocera TAJD107M016RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

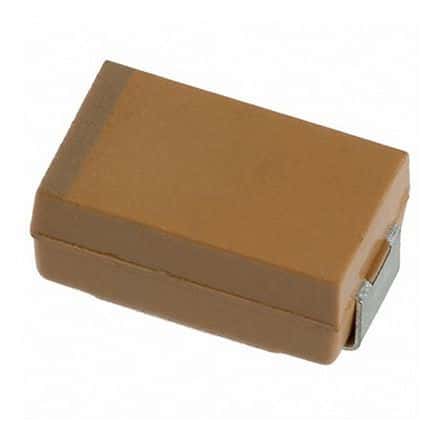

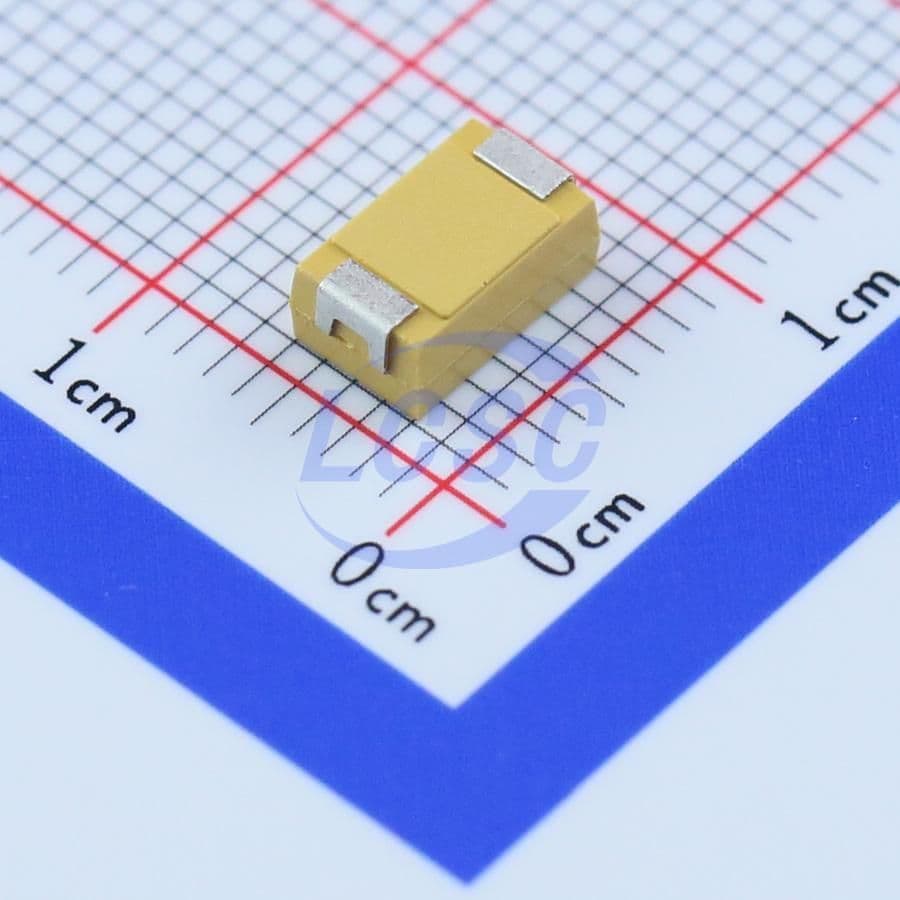

Product Images
