Surface mount tantalum capacitor with 15uF capacitance and 50V voltage rating. Features 10% tolerance, 6% dissipation factor, and 600mR ESR. Constructed with a flat tantalum dielectric, it operates from -55°C to 125°C and has a leakage current of 7.5uA. Packaged in a 7343 metric / 2917 imperial case size, this RoHS compliant component is supplied on tape and reel.
Package2917
Capacitance15uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TAJD156K050RNJ technical specifications.
General
| Capacitance | 15uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 600mR |
| Features | General Purpose |
| Height | 3.1mm |
| Height - Seated (Max) | 0.122inch |
| Lead Free | Lead Free |
| Lead Pitch | 4.4mm |
| Leakage Current | 7.5uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 50V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJD156K050RNJ Datasheet
Download the complete datasheet for Kyocera TAJD156K050RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

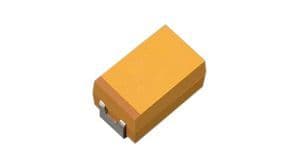

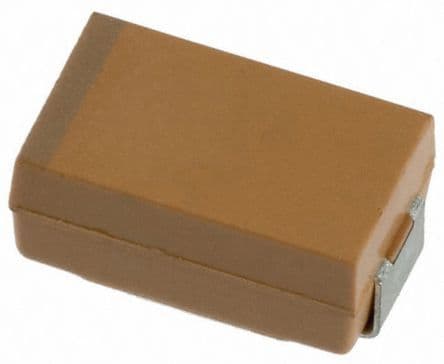

Product Images
