Surface mount tantalum capacitor, 2.2µF capacitance, 10% tolerance, and 50V DC rated voltage. Features a 2917 (7343 metric) case code, 2.5Ω ESR, and 1.1µA leakage current. Operates from -55°C to 125°C with a 6% dissipation factor. RoHS compliant and lead-free.
Package2917
Voltage50V
Capacitance2.2uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera TAJD225K050RNJ technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
2.5R
Features
General Purpose
Height
2.9mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
1.1uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD225K050RNJ Datasheet
Download the complete datasheet for Kyocera TAJD225K050RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

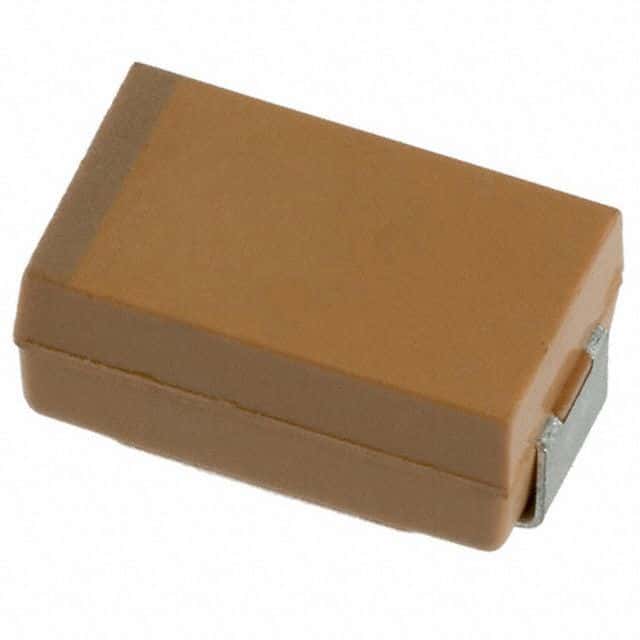

Product Images
