Surface mount tantalum capacitor, 2.2µF capacitance, 50V DC rated voltage, 20% tolerance. Features 2.5Ω ESR, 6% dissipation factor, and 1.1µA leakage current. Operating temperature range from -55°C to 125°C. Housed in a 2917 (7343 metric) case code with a flat construction. Lead-free and RoHS compliant.
Package2917
Capacitance2.2uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TAJD225M050RNJ technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 2.5R |
| Features | General Purpose |
| Height | 3.1mm |
| Height - Seated (Max) | 0.122inch |
| Lead Free | Lead Free |
| Leakage Current | 1.1uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.023634oz |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJD225M050RNJ Datasheet
Download the complete datasheet for Kyocera TAJD225M050RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

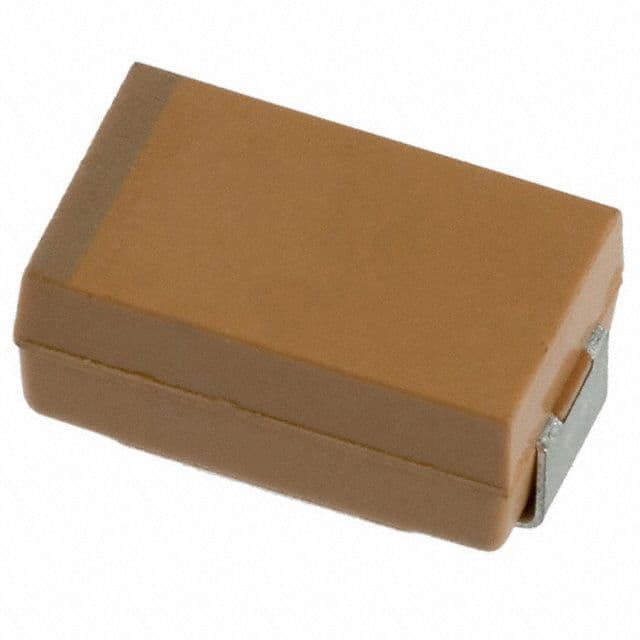

Product Images
