Surface mount tantalum capacitor with 33µF capacitance and 10% tolerance. Features a 20V DC rated voltage, 900mΩ ESR, and 6.6µA leakage current. Operating temperature range from -55°C to 125°C. Constructed with a flat tantalum dielectric in a 2917 (7343 metric) case code. RoHS compliant and lead-free.
Package2917
Voltage20V
Capacitance33uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Kyocera TAJD336K020RNJ technical specifications.
General
Capacitance
33uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
900mR
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
6.6uA
Length
7.3mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
408mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
20V
Voltage Rating
20V
DC Rated Voltage
20V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD336K020RNJ Datasheet
Download the complete datasheet for Kyocera TAJD336K020RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

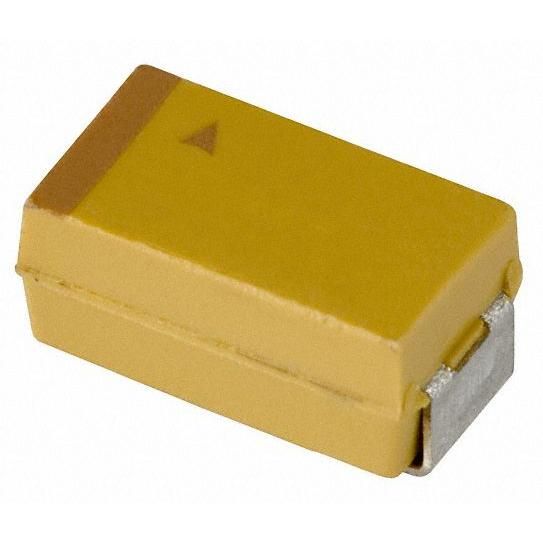

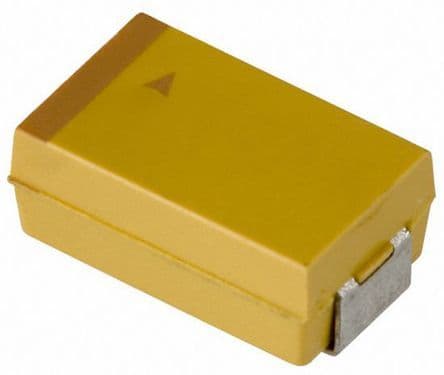

Product Images
