Surface mount tantalum capacitor with 47uF capacitance and 20% tolerance. Features a 25V DC rated voltage and a 2917 (7343 metric) case code. Operating temperature range from -55°C to 125°C, with a maximum ripple current of 408mA and ESR of 900mR. This general-purpose component is RoHS compliant and constructed with a flat tantalum dielectric.
Package2917
Voltage25V
Capacitance47uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TAJD476M025RNJ technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
900mR
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Leakage Current
11.8uA
Length
7.3mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
408mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD476M025RNJ Datasheet
Download the complete datasheet for Kyocera TAJD476M025RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

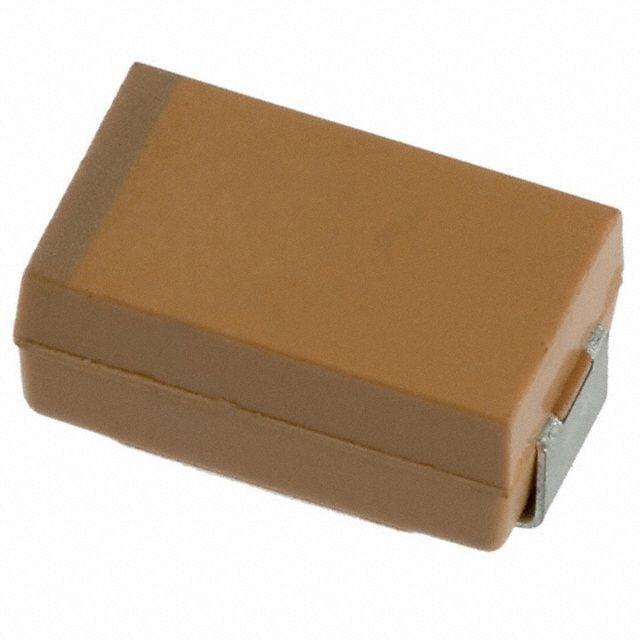

Product Images
