Surface mount tantalum capacitor, 470µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features 400mΩ ESR, 612mA ripple current, and 28µA leakage current. Operates from -55°C to 125°C with a 2000-hour life rating. Housed in a 2917 (7343 metric) case with flat construction, measuring 7.3mm length, 4.3mm depth, and 3.1mm height. Lead-free and RoHS compliant.
Package2917
Capacitance470uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TAJD477M006RNJ technical specifications.
General
| Capacitance | 470uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 400mR |
| Features | General Purpose |
| Height | 3.1mm |
| Height - Seated (Max) | 0.122inch |
| Lead Free | Lead Free |
| Leakage Current | 28uA |
| Length | 7.3mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Ripple Current | 612mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJD477M006RNJ Datasheet
Download the complete datasheet for Kyocera TAJD477M006RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

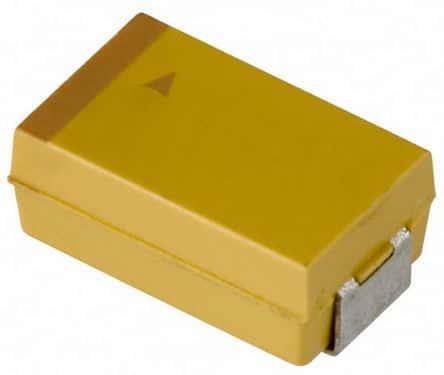

Product Images
