Surface mount tantalum capacitor with 6.8µF capacitance and 10% tolerance. Features a 50V DC voltage rating, 125°C maximum operating temperature, and low ESR of 1Ω. Constructed with a flat tantalum dielectric in a 2917 (7343 metric) case code, measuring 7.3mm L x 4.3mm W x 2.9mm H. This general-purpose component offers a leakage current of 3.4µA and ripple current capability of 387mA, supplied on tape and reel.
Package2917
Voltage50V
Capacitance6.8uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera TAJD685K050RNJ technical specifications.
General
Capacitance
6.8uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1R
Features
General Purpose
Height
2.9mm
Lead Free
Lead Free
Leakage Current
3.4uA
Length
7.3mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
387mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJD685K050RNJ Datasheet
Download the complete datasheet for Kyocera TAJD685K050RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

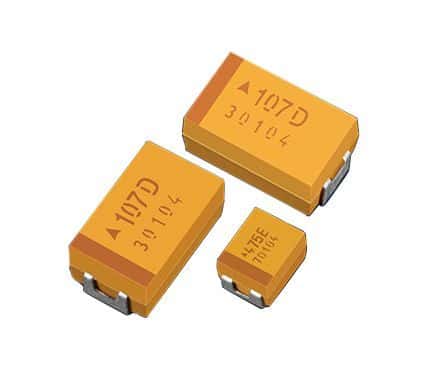

Product Images
