100uF, 16V tantalum capacitor with 10% tolerance, designed for general purpose applications. Features a 2917 (7343 metric) surface mount case with a flat construction, measuring 7.3mm in length, 4.3mm in depth, and 4.1mm in height. Offers a dissipation factor of 6%, ESR of 900mR, and a leakage current of 16uA. Operates within a temperature range of -55°C to 125°C and is RoHS compliant.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TAJE107K016RNJ technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 900mR |
| Features | General Purpose |
| Height | 4.1mm |
| Height - Seated (Max) | 0.169inch |
| Lead Free | Lead Free |
| Leakage Current | 16uA |
| Length | 7.3mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Q Factor | 6 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 428mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 16V |
| DC Rated Voltage | 16V |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJE107K016RNJ Datasheet
Download the complete datasheet for Kyocera TAJE107K016RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

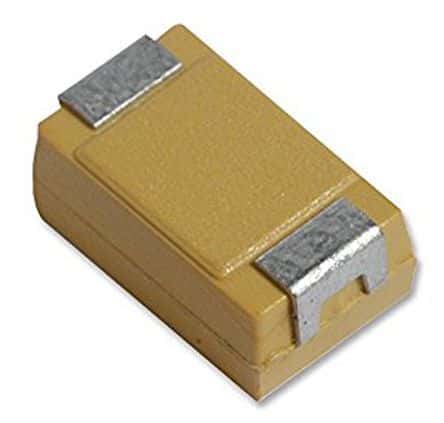

Product Images
