22µF, 35V DC rated, solid manganese dioxide tantalum electrolytic capacitor for general purpose applications. Features a 10% tolerance, 500mΩ ESR, and 7.7µA leakage current. Surface mountable in a 7343 metric / 2917 imperial case code, with dimensions of 7.3mm length, 4.3mm width, and 4.1mm height. Operates across a -55°C to 125°C temperature range and is RoHS compliant.
Package2917
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Kyocera TAJE226K035RNJ technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 500mR |
| Features | General Purpose |
| Height | 4.1mm |
| Lead Free | Lead Free |
| Leakage Current | 7.7uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJE226K035RNJ Datasheet
Download the complete datasheet for Kyocera TAJE226K035RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

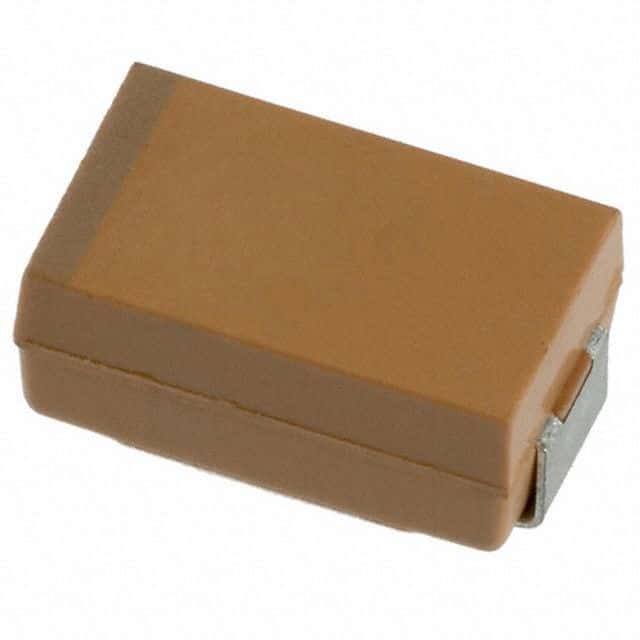

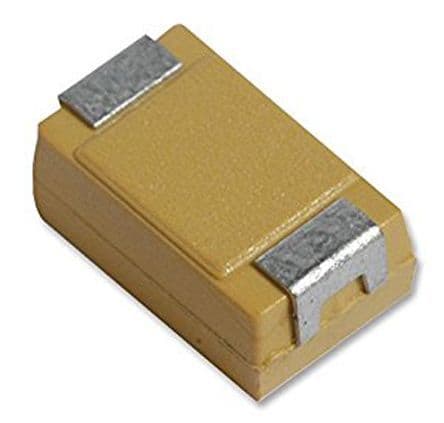

Product Images
