Surface mount tantalum capacitor, 470µF capacitance, 10% tolerance, and 10V DC rated voltage. Features a 2917 (7343 metric) case code with flat construction, measuring 7.3mm L x 4.3mm W x 4.1mm H. Operating temperature range from -55°C to 125°C, with 500mΩ ESR and 47µA leakage current. RoHS compliant and lead-free.
Package2917
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TAJE477K010RNJ technical specifications.
General
| Capacitance | 470uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 500mR |
| Features | General Purpose |
| Height | 4.1mm |
| Lead Free | Lead Free |
| Lead Pitch | 4.4mm |
| Leakage Current | 47uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJE477K010RNJ Datasheet
Download the complete datasheet for Kyocera TAJE477K010RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

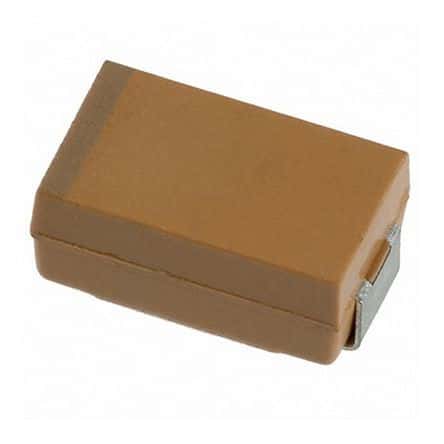

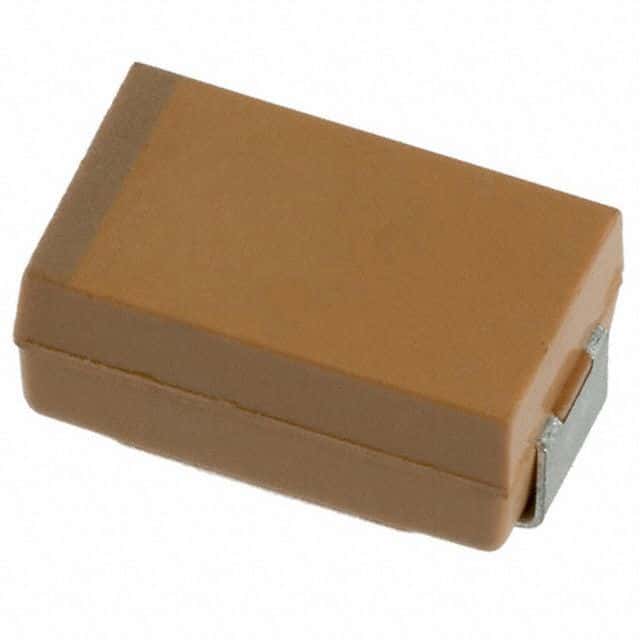

Product Images
