10uF Tantalum Capacitor, 10V DC rated voltage, 20% tolerance, and 8% dissipation factor. Features a 0805 (2012 metric) surface mount case code with dimensions of 2.05mm length, 1.35mm width, and 1.5mm height. This general-purpose capacitor offers a low leakage current of 1uA and ESR of 6 Ohms, operating within a -55°C to 125°C temperature range. Designed for PCB mounting, it is RoHS compliant and supplied in tape and reel packaging.
Package0805
Voltage10V
Capacitance10uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TAJP106M010RNJ technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.35mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 6R |
| Features | General Purpose |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 2.05mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Reach SVHC Compliant | No |
| Ripple Current | 100mA |
| RoHS Compliant | Yes |
| Series | TAJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| Voltage Rating (AC) | 10V |
| DC Rated Voltage | 10V |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAJP106M010RNJ Datasheet
Download the complete datasheet for Kyocera TAJP106M010RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

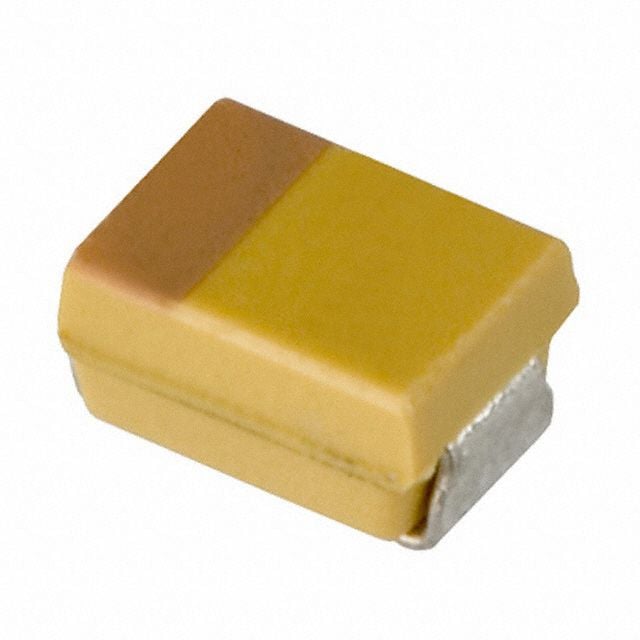

Product Images
