Surface mount tantalum capacitor with 2.2 µF capacitance and 16V DC rated voltage. Features a 10% tolerance, 6.5Ω ESR, and 500nA leakage current. Operating temperature range from -55°C to 125°C. Housed in an 0805 (2012 Metric) case code with tape and reel packaging.
Package0805
Capacitance2.2uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TAJR225K016RNJ technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
6.5R
Features
General Purpose
Height
1.2mm
Height - Seated (Max)
0.047inch
Lead Free
Lead Free
Lead Pitch
0.85mm
Leakage Current
500nA
Length
2.05mm
Life (Hours)
2000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
92mA
RoHS Compliant
Yes
Series
TAJ
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
16V
DC Rated Voltage
16V
Weight
0.000194oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TAJR225K016RNJ Datasheet
Download the complete datasheet for Kyocera TAJR225K016RNJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

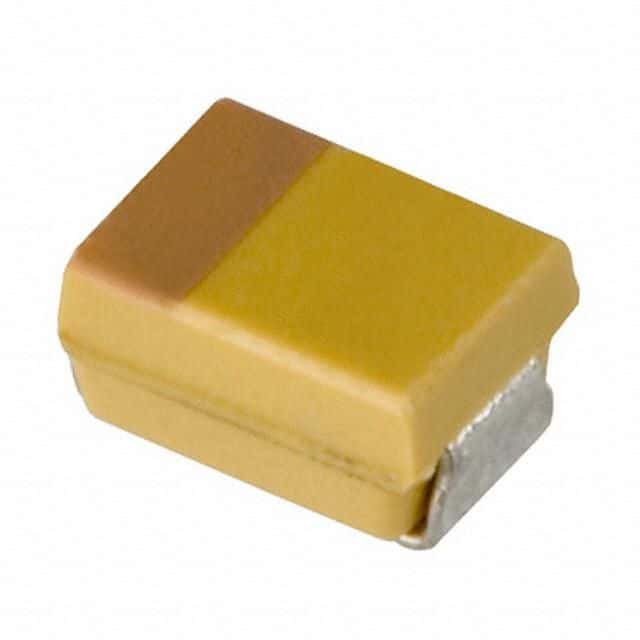

Product Images
