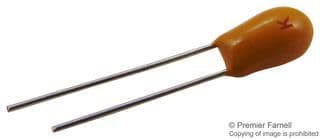

Solid Tantalum Capacitor, 22µF capacitance, 16V DC rated voltage, 10% tolerance. Features a 2 Ohm ESR, 2.8µA leakage current, and operates from -55°C to 125°C. Dipped package with radial leads, 2.5mm pitch, and 0.5mm lead diameter. Through-hole mounting, 6mm diameter, 10mm height, RoHS compliant.
PackageDipped
Voltage20V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TAP226K016SCS technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Dipped |
| Construction | RADIAL |
| Diameter | 6mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 2R |
| Features | General Purpose |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 2.8uA |
| Length | 10mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TAP |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 20V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAP226K016SCS Datasheet
Download the complete datasheet for Kyocera TAP226K016SCS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
