Radial tantalum capacitor with 22µF capacitance and 20% tolerance, rated for 6.3V DC. Features a dipped package with a 2.5mm lead pitch and 0.5mm lead diameter, designed for through-hole mounting. Operates across a wide temperature range from -55°C to 125°C, with a low leakage current of 1.1µA and 3.7Ω ESR. This general-purpose component is RoHS compliant and lead-free.
PackageDipped
Capacitance22uF
Voltage Rating6.3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Kyocera TAP226M006SCS technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Dipped |
| Construction | RADIAL |
| Diameter | 5mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 3.7R |
| Features | General Purpose |
| Height | 9mm |
| Height - Seated (Max) | 0.354inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 1.1uA |
| Length | 9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TAP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TAP226M006SCS Datasheet
Download the complete datasheet for Kyocera TAP226M006SCS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

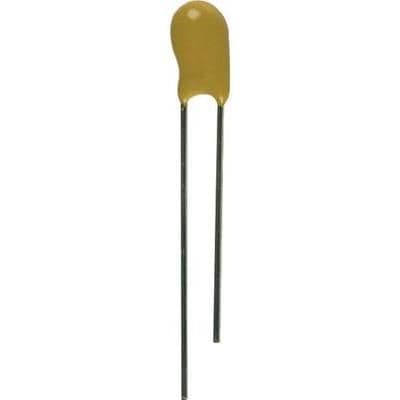

Product Images
