Surface mount tantalum capacitor, 10µF capacitance, 6.3V DC rated voltage, 20% tolerance, and 500mΩ ESR. Features a 6% dissipation factor, 6µA leakage current, and operates from -55°C to 125°C. Constructed with a flat dielectric material, this polar capacitor is housed in an 0805 (2012 metric) case.
Package0805
Voltage6.3V
Capacitance10uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TCJR106M006R0500 technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 500mR |
| Features | General Purpose |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Leakage Current | 6uA |
| Length | 2.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TCJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TCJR106M006R0500 Datasheet
Download the complete datasheet for Kyocera TCJR106M006R0500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

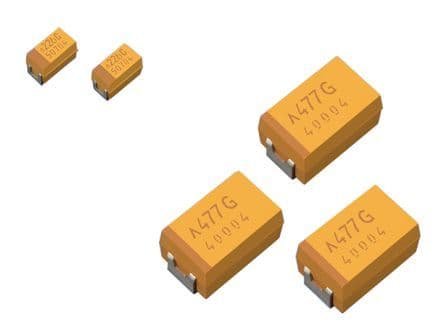

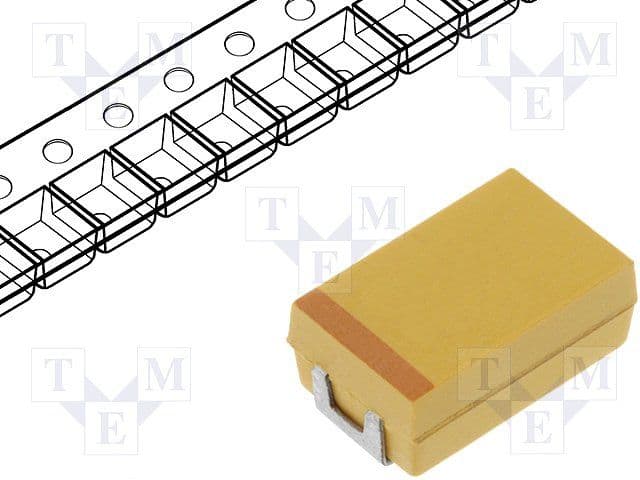

Product Images
