150 µF, 6.3V SMT Polymer Tantalum Electrolytic Chip Capacitor with ±20% tolerance. Features 200mΩ ESR and 10% dissipation factor, operating from -55°C to 105°C. Surface mount construction in a 3528 (1411) case code, measuring 3.5mm x 2.8mm x 1.2mm. Lead-free and RoHS compliant, supplied on tape and reel.
Package1210
Capacitance150uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TCNT157M006R0200 technical specifications.
General
| Capacitance | 150uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.8mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 200mR |
| Features | General Purpose |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TCN J-CAP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TCNT157M006R0200 Datasheet
Download the complete datasheet for Kyocera TCNT157M006R0200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

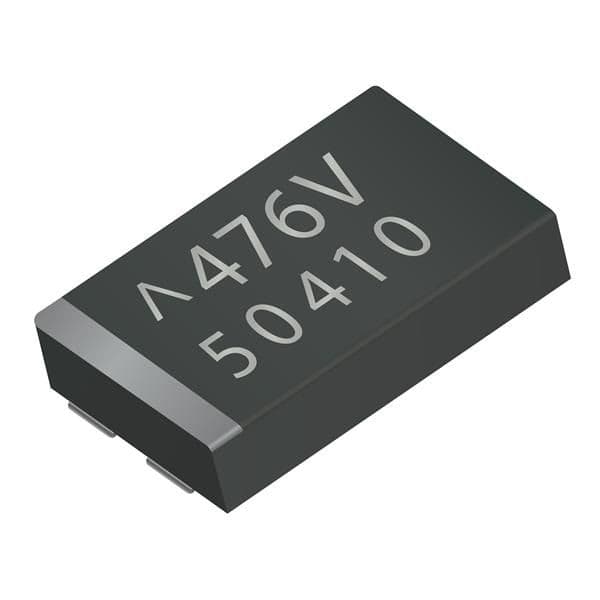

Product Images
