Surface mount tantalum capacitor with 33µF capacitance and 6.3V DC rating. Features 2.2Ω ESR and 10% tolerance, housed in a 1210 (3528) case code with a maximum operating temperature of 175°C. This lead-free component is AEC-Q200 qualified and RoHS compliant, supplied in tape and reel packaging.
Package1210
Capacitance33uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera THJB336K006RJN technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3528 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 2.2R |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Length | 3.5mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | THJ |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera THJB336K006RJN Datasheet
Download the complete datasheet for Kyocera THJB336K006RJN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

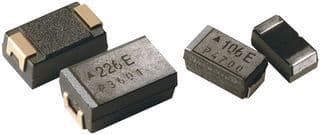

Product Images
