Surface mount tantalum capacitor with 33µF capacitance and 20% tolerance. Features a 6.3V DC rated voltage and low ESR of 7.5Ω. Encased in a compact 0603 (1608 metric) package, this general-purpose component operates from -55°C to 125°C and is RoHS compliant.
Package0603
Capacitance33uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Kyocera TLCL336M006RTA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Kyocera TLCL336M006RTA technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.85mm |
| ESR (Equivalent Series Resistance) | 7.5R |
| Features | General Purpose |
| Height | 1mm |
| Lead Free | Lead Free |
| Leakage Current | 2.1uA |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TLC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Weight | 7.1E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TLCL336M006RTA Datasheet
Download the complete datasheet for Kyocera TLCL336M006RTA to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

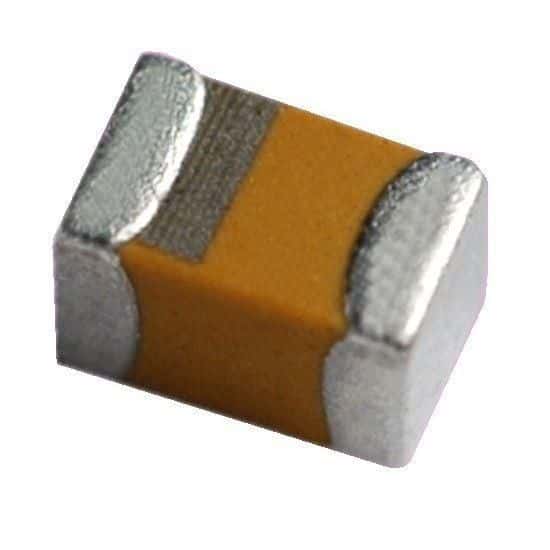

Product Images
