Surface mount tantalum capacitor with 10 µF capacitance and 20 V DC rating. Features a ±20% tolerance, operating temperature range of -55 °C to 125 °C, and a maximum leakage current of 2 µA. Housed in a compact 0805 (2012 metric) case code, this general-purpose component offers low ESR of 5R and is lead-free and RoHS compliant. Supplied in tape and reel packaging.
Package0805
Capacitance10uF
Voltage Rating20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TLCR106M020RTA technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| ESR (Equivalent Series Resistance) | 5R |
| Features | General Purpose |
| Height | 1.5mm |
| Height - Seated (Max) | 0.059inch |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Length | 0.079inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | TLC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
| Weight | 0.000194oz |
| Width | 0.053inch |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TLCR106M020RTA Datasheet
Download the complete datasheet for Kyocera TLCR106M020RTA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

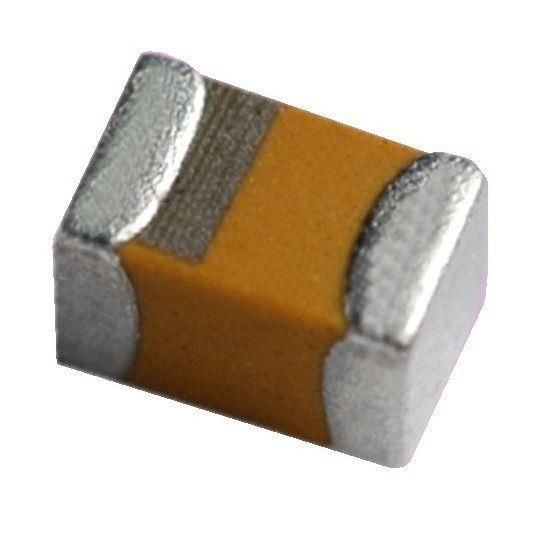

Product Images
