Solid Tantalum Capacitor, 150µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a B case code (3528 metric, 1210 imperial) with dimensions of 3.5mm length, 2.8mm width, and 1.9mm height. Offers 500mΩ ESR and 15µA leakage current. Operates from -55°C to 125°C, with a ripple current rating of 412mA. Surface mount, lead-free, and RoHS compliant, supplied in tape and reel packaging.
PackageMolded
Voltage10V
Capacitance150uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TLJB157M010R0500 technical specifications.
General
| Capacitance | 150uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3528 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| ESR (Equivalent Series Resistance) | 500mR |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.4mm |
| Leakage Current | 15uA |
| Length | 3.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 412mA |
| RoHS Compliant | Yes |
| Series | TLJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| Voltage Rating (AC) | 10V |
| DC Rated Voltage | 10V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TLJB157M010R0500 Datasheet
Download the complete datasheet for Kyocera TLJB157M010R0500 to view detailed technical specifications.
No datasheet is available for this part.

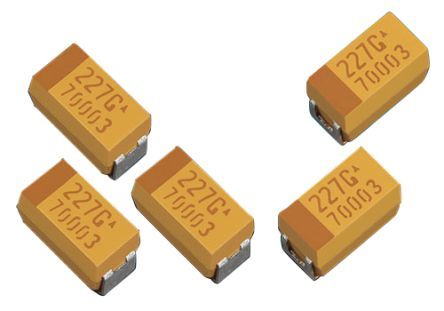

Product Images
