Surface mount tantalum capacitor with 10µF capacitance and 20% tolerance. Features a 50V DC voltage rating, 140mΩ ESR, and 8% dissipation factor. Housed in a 2917 (7343 metric) case code with a flat construction, measuring 7.3mm in length, 4.3mm in depth, and 3.1mm in height. Operates across a temperature range of -55°C to 125°C.
Package2917
Capacitance10uF
Resistance0.14R
Voltage Rating50V
Quick Jump:
Technical Specifications
Kyocera TPMD106M050R0140 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
140mR
Features
General Purpose
Height
3.1mm
Height - Seated (Max)
0.122inch
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
0.14R
RoHS Compliant
Yes
Series
TPM
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPMD106M050R0140 Datasheet
Download the complete datasheet for Kyocera TPMD106M050R0140 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

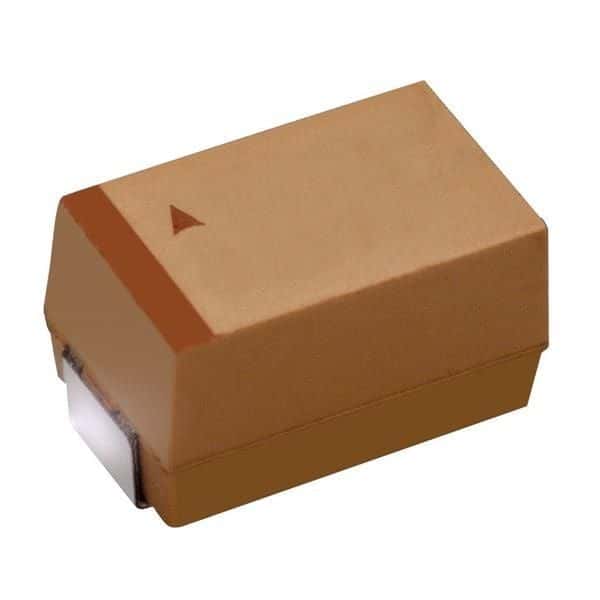

Product Images
