Surface mount tantalum capacitor, 100µF capacitance, 20V DC rated voltage, and 10% tolerance. Features 35mΩ ESR, 6% dissipation factor, and 20µA leakage current. Operating temperature range from -55°C to 125°C. Constructed with a flat tantalum dielectric in a 2917 (7343 metric) case code.
Package2917
Voltage20V
Capacitance100uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Kyocera TPME107K020R0035 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
35mR
Features
General Purpose
Height
4.1mm
Lead Free
Lead Free
Leakage Current
20uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.111mA
RoHS Compliant
Yes
Series
TPM
Termination
SMD/SMT
Tolerance
10%
Voltage
20V
Voltage Rating
20V
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPME107K020R0035 Datasheet
Download the complete datasheet for Kyocera TPME107K020R0035 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

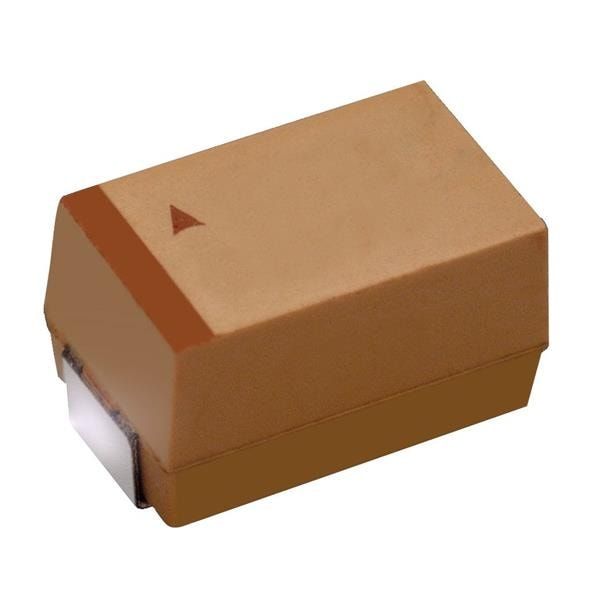

Product Images
