Surface mount tantalum capacitor with 100uF capacitance and 20% tolerance. Features 20V DC rated voltage, 35mR ESR, and 6% dissipation factor. Operating temperature range from -55°C to 125°C. Constructed with a flat tantalum dielectric in a 2917 (7343 metric) case code. Includes 20uA leakage current and 1.111mA ripple current.
Package2917
Capacitance100uF
Voltage Rating20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TPME107M020R0035 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
35mR
Features
General Purpose
Height
4.3mm
Lead Free
Lead Free
Leakage Current
20uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
400
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
1.111mA
RoHS Compliant
Yes
Series
TPM
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
20V
DC Rated Voltage
20V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPME107M020R0035 Datasheet
Download the complete datasheet for Kyocera TPME107M020R0035 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

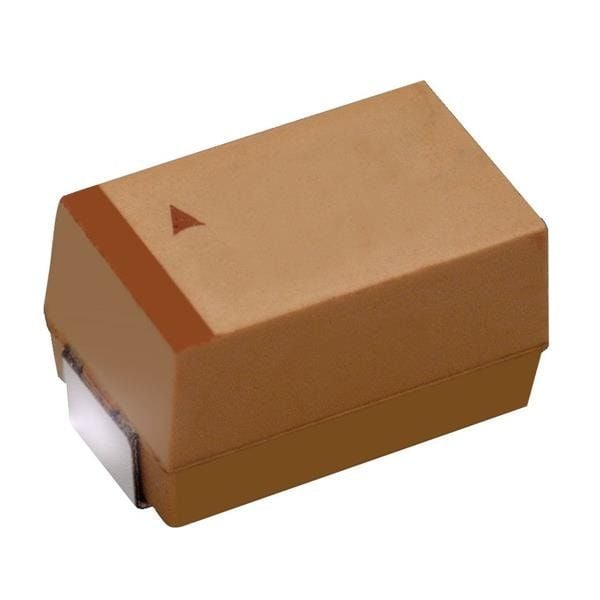

Product Images
