Surface mount tantalum capacitor, 470µF capacitance, 10% tolerance, and 6.3V voltage rating. Features a 2917 (7343 metric) case code with a flat construction, measuring 7.3mm length, 4.3mm width, and 4.1mm height. Offers 23mΩ ESR, 28µA leakage current, and 1.37mA ripple current. Operates across a -55°C to 125°C temperature range and is RoHS compliant.
Package2917
Voltage6.3V
Capacitance470uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Kyocera TPME477K006R0023 technical specifications.
General
Capacitance
470uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
23mR
Features
General Purpose
Height
4.1mm
Height - Seated (Max)
0.169inch
Lead Free
Lead Free
Leakage Current
28uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.37mA
RoHS Compliant
Yes
Series
TPM
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPME477K006R0023 Datasheet
Download the complete datasheet for Kyocera TPME477K006R0023 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

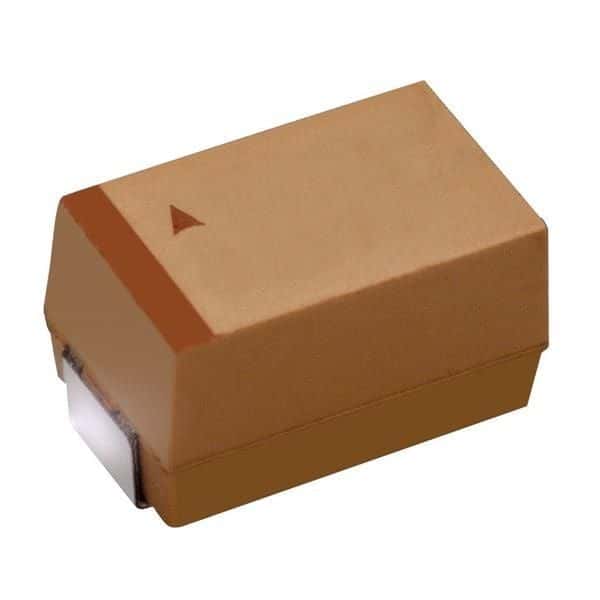

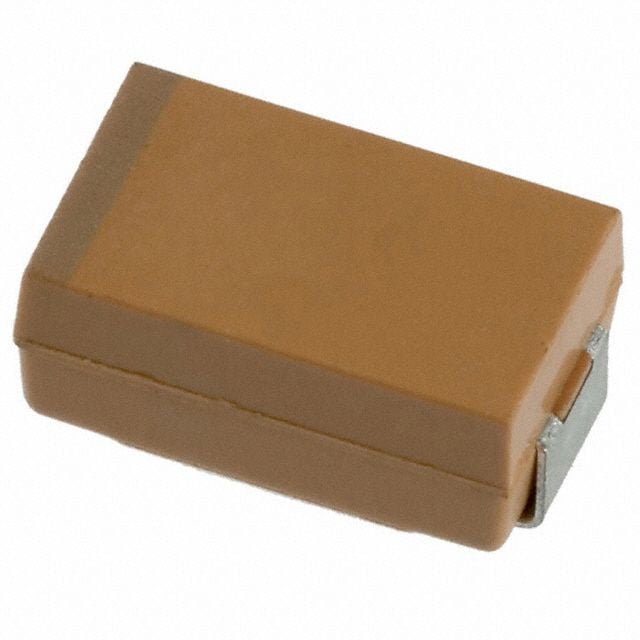

Product Images
