Package1206
Capacitance10uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TPSA106K010Y1800 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Depth
1.6mm
ESR (Equivalent Series Resistance)
1.8R
Features
General Purpose
Height
1.8mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
10V
DC Rated Voltage
10V
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSA106K010Y1800 Datasheet
Download the complete datasheet for Kyocera TPSA106K010Y1800 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

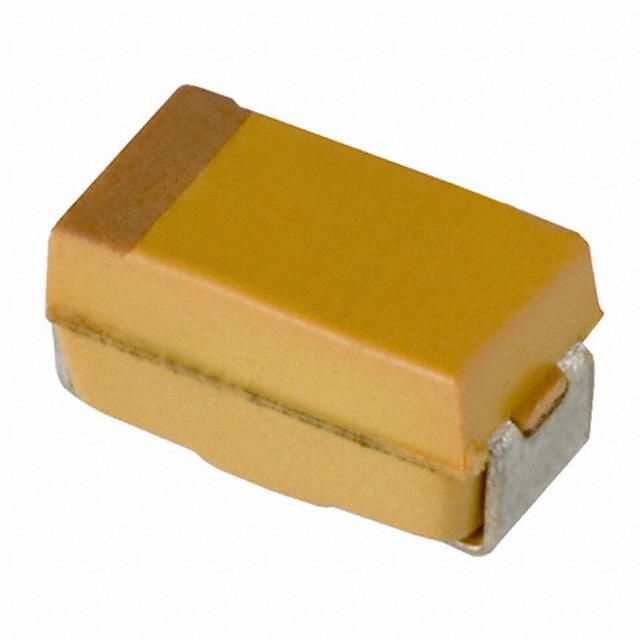

Product Images
