Solid Tantalum Capacitor, 10uF capacitance with 10% tolerance, rated for 16V DC. Features a 1206 (3216 metric) SMD/SMT package with 1R ESR. Operates across a wide temperature range from -55°C to 125°C. This general-purpose component is lead-free, RoHS compliant, and supplied on tape and reel.
Package1206
Capacitance10uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Kyocera TPSA106K016R1000 technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| ESR (Equivalent Series Resistance) | 1R |
| Features | General Purpose |
| Height | 1.8mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | TPS |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.000571oz |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSA106K016R1000 Datasheet
Download the complete datasheet for Kyocera TPSA106K016R1000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

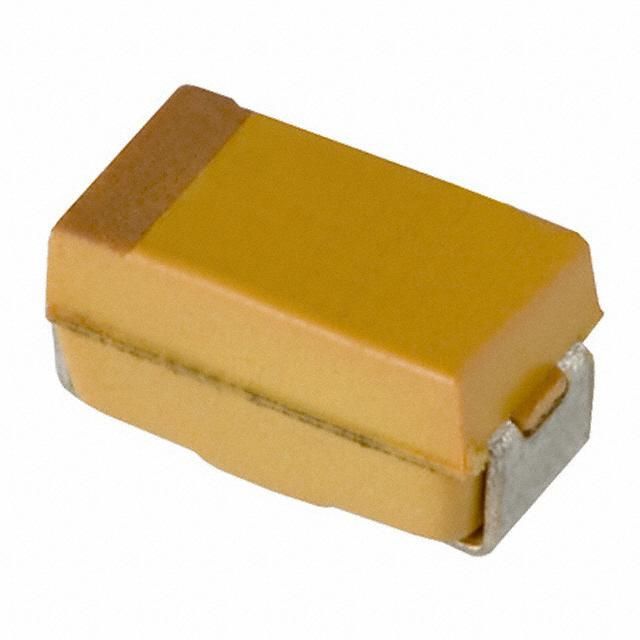

Product Images
