Surface mount tantalum capacitor with 1.5µF capacitance and 10% tolerance. Features a 25V DC rated voltage, 1.8Ω ESR, and 6% dissipation factor. Constructed with a flat tantalum dielectric, this general-purpose component is housed in a 1210 (3528 metric) SMD case, measuring 3.5mm L x 2.8mm W x 1.9mm H. Operates from -55°C to 125°C, with a leakage current of 500nA. RoHS compliant and lead-free.
Package1210
Voltage25V
Capacitance1.5uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TPSB155K025R1800 technical specifications.
General
| Capacitance | 1.5uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3528 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 1.8R |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 3.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TPS |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 0.000564oz |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSB155K025R1800 Datasheet
Download the complete datasheet for Kyocera TPSB155K025R1800 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

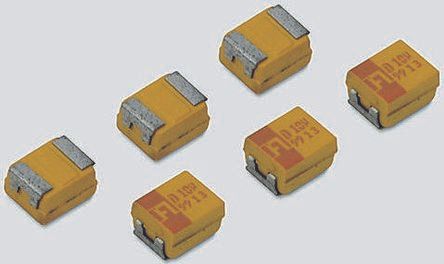

Product Images
