Surface mount tantalum capacitor, 10µF capacitance, 25V voltage rating, and 10% tolerance. Features a 300mΩ ESR, 2.5µA leakage current, and a maximum operating temperature of 125°C. Housed in a 2312 (6032 metric) molded case with flat construction, measuring 6mm in length, 3.2mm in width, and 2.6mm in height. This RoHS compliant component is designed for general-purpose applications.
PackageMolded
Voltage25V
Capacitance10uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Kyocera TPSC106K025R0300 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
300mR
Features
General Purpose
Height
2.6mm
Lead Free
Lead Free
Leakage Current
2.5uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
Voltage Rating (AC)
25V
DC Rated Voltage
25V
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Kyocera TPSC106K025R0300 Datasheet
Download the complete datasheet for Kyocera TPSC106K025R0300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

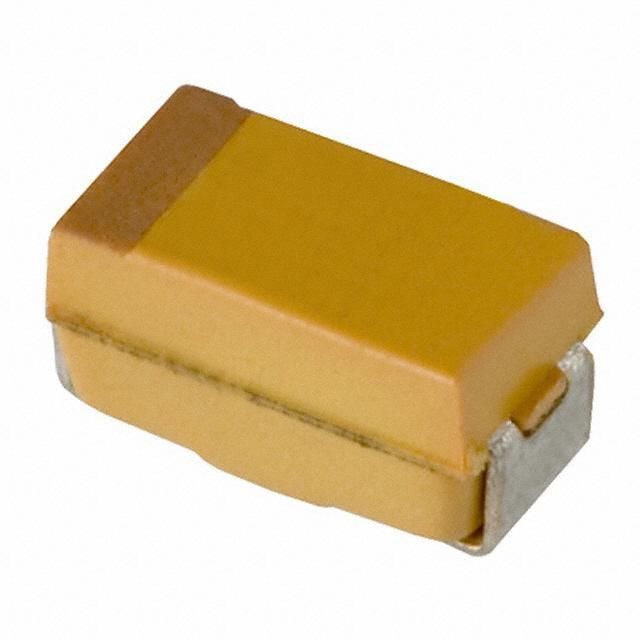

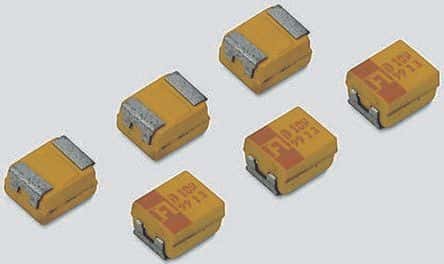

Product Images
