Surface mount tantalum capacitor offering 100 µF capacitance and 10 V DC rated voltage. Features a 150 mΩ ESR, 10 µA leakage current, and ±10% capacitance tolerance. Operates across a -55 °C to +125 °C temperature range. Housed in a 2312 (6032 metric) molded case with SMD/SMT termination.
PackageMolded
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Kyocera TPSC107K010R0150 technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 150mR |
| Features | General Purpose |
| Height | 2.6mm |
| Lead Free | Lead Free |
| Leakage Current | 10uA |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TPS |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera TPSC107K010R0150 Datasheet
Download the complete datasheet for Kyocera TPSC107K010R0150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

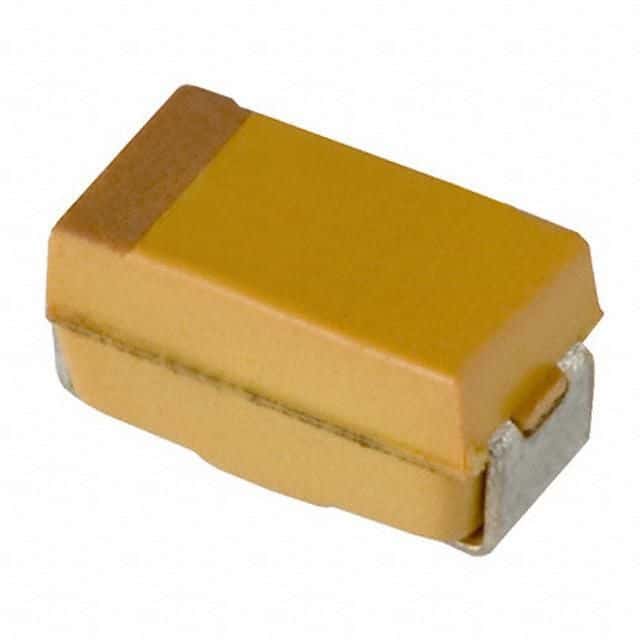

Product Images
