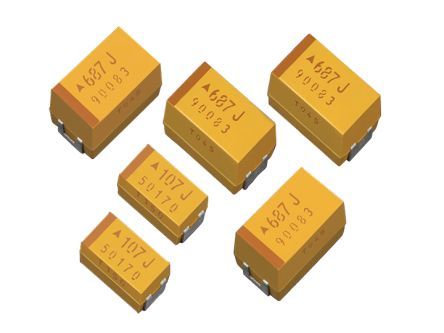

Solid tantalum capacitor, 100µF capacitance, 16V DC voltage rating, 10% tolerance. Features 200mΩ ESR, 16µA leakage current, and a maximum operating temperature of 125°C. Surface mountable in a 6032 metric case code (2312 imperial), with dimensions of 6mm length, 3.2mm width, and 2.8mm height. RoHS compliant and lead-free.
Package2312
Capacitance100uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera TPSC107K016R0200 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
2312
Construction
Flat
Depth
3.2mm
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
200mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
16uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
16V
DC Rated Voltage
16V
Width
3.2mm
Compliance
RoHS
Compliant
